How to Choose Preformed Armor Rods Production Equipment? Phased Investment Guide for Manufacturers
Introduction
In real business scenarios, we often receive questions like:
- When should we start investing in preformed armor rods production equipment?
- What machines are required in the initial stage?
- How can we expand production capacity later?
Choosing the right equipment and investing step by step can significantly reduce risks while improving product quality and production efficiency.
This guide provides a complete overview of preformed armor rods production equipment, along with practical phased investment strategies to help manufacturers grow sustainably.
1. Main Components of Preformed Armor Rods Production Equipment

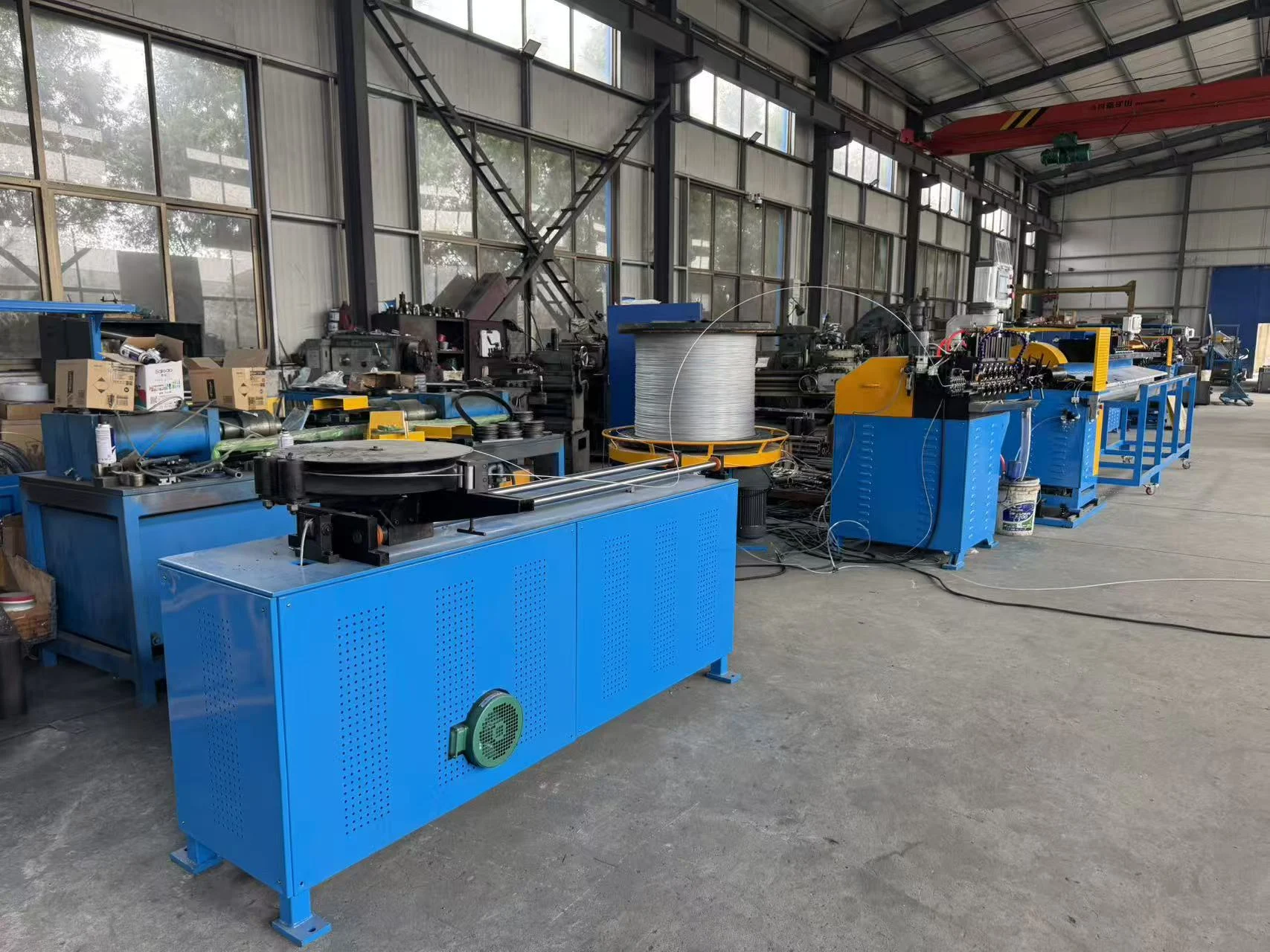

A typical production line includes the following core modules:
1. Pay-off Machine (Decoiler)
Function:
- Stable wire feeding
- Tension control
- Continuous operation
⚠️ Important Notice:
Wire spool is NOT included in the equipment supply.
Customers can:
- Use existing spools
- Or purchase locally
👉 For steel strand straightening & cutting machines (if separately required), please provide:
- Spool outer diameter
- Spool width
- Center hole diameter

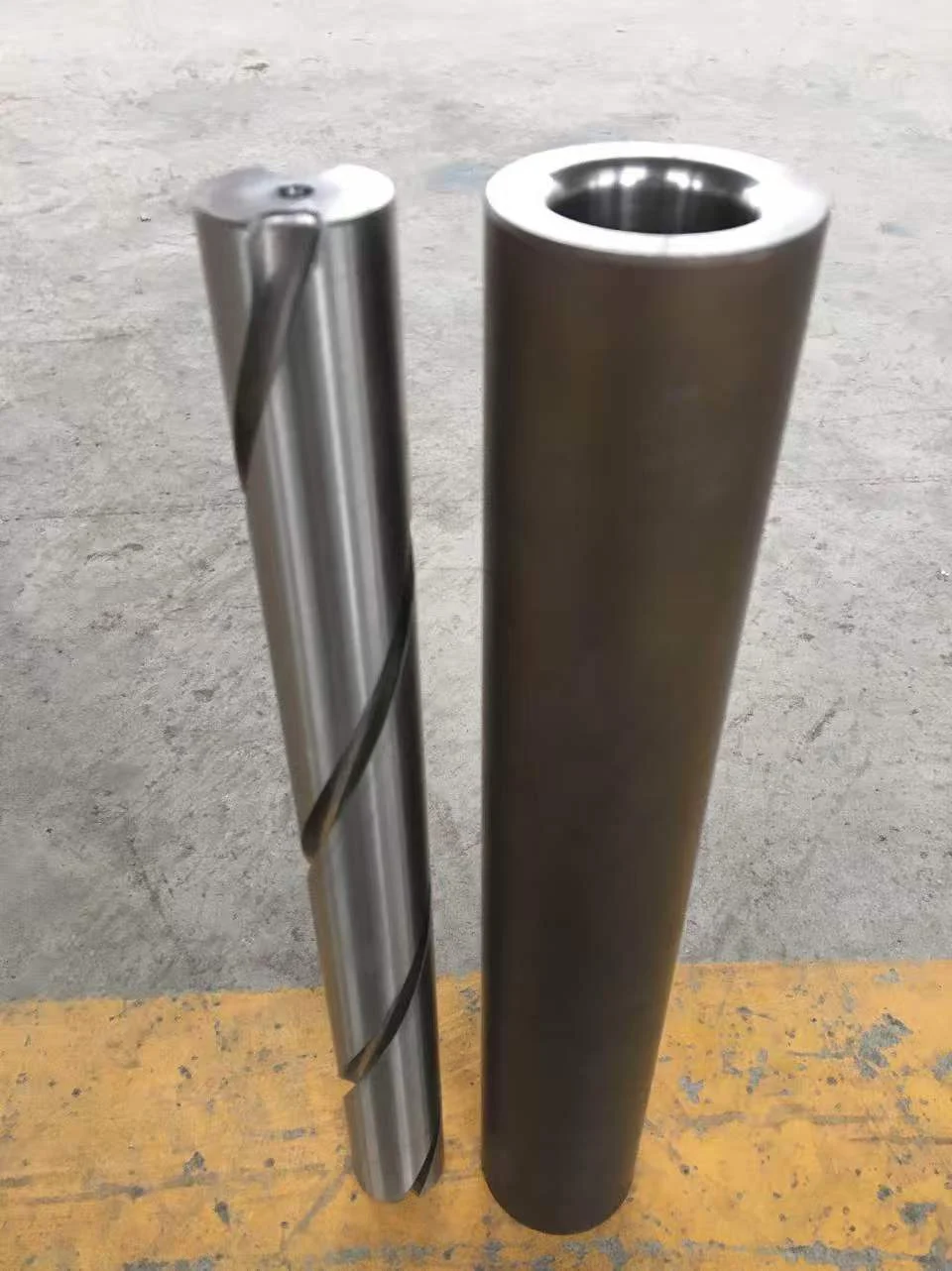

2. Forming Machine (Core Equipment)
Function:
- Converts straight wire into precise helical structures
Features:
- High pitch consistency
- Adjustable helix angle
- Stable forming precision
3. End Forming Equipment (Duckbill / Round End)
Function:
- Improve installation efficiency
- Prevent conductor damage
- Reduce stress concentration
4. Surface Treatment Equipment (Optional)
Includes:
- Sanding
- Coating
- Gluing
Purpose:
- Improve corrosion resistance
- Enhance durability
5. Packaging System
Function:
- Bundling
- Labeling
- Shipment preparation
2. Key Equipment Selection Parameters
| Equipment | Key Parameters | Applicable Wire Diameter (mm) | Notes |
|---|---|---|---|
| Pay-off Machine | Tension control, spool matching | 1.6–9.27 | Match existing spool |
| Forming Machine | Pitch accuracy, helix adjustment | 1.6–9.27 | Material affects mold |
| End Forming | End type & efficiency | – | Reduce conductor damage |
| Surface Treatment | Coating quality | – | Environmental requirements |
Material Tip:
Different materials (aluminum alloy, galvanized steel, aluminum-clad steel) require different tension control and mold durability.
3. Phased Investment Plan
Stage 1: Entry-Level Setup
Equipment:
- Pay-off machine
Suitable for:
- Small batch production
- Market testing
Stage 2: Core Production
Add:
- Forming machine
Stage 3: Quality Upgrade
Add:
- End forming equipment
- Inspection system
- Surface treatment
Stage 4: Full Automation
Upgrade:
- PLC control system
- Automatic feeding

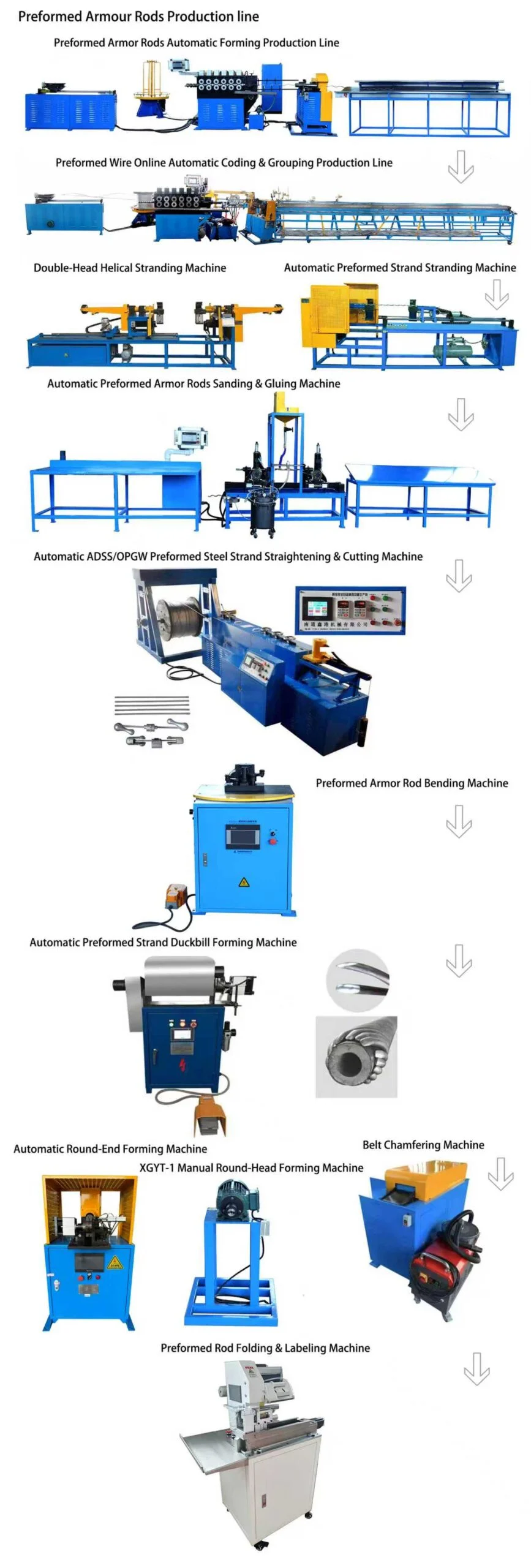

This diagram shows the complete workflow from raw wire feeding to final armor rod production, helping manufacturers understand how equipment investment aligns with each production stage.
4. Manual vs Automated Production
| Aspect | Manual | Semi-Auto | Full Auto |
|---|---|---|---|
| Efficiency | Low | Medium | High |
| Stability | Low | Medium | High |
| Labor Cost | High | Medium | Low |
| Consistency | Low | Medium | High |
5. Common Mistakes
- Only focusing on price
- Ignoring wire specifications
- Overlooking mold quality
👉 Recommendation: Start small, then expand.
6. FAQ
Q1: What equipment is needed first?
A: Pay-off machine + forming machine.
Q2: Do materials affect machine choice?
A: Yes, especially molds and tension control.
Q3: Delivery time?
A: 45–80 working days.
Q4: Installation & training?
A: Remote technical guidance is provided free of charge.
If on-site installation or training is required, the Buyer shall bear the related costs, including engineer travel, accommodation, and service fees.
7. Conclusion
Choosing the right production equipment determines:
- Product quality
- Production efficiency
- Long-term competitiveness
A phased investment strategy helps manufacturers grow safely and efficiently.
