Preformed Armor Rods Manufacturing Process (Step-by-Step Guide)
Preformed armor rods are essential components used to protect overhead conductors from mechanical stress, vibration, and long-term environmental impact.
Understanding the preformed armor rods manufacturing process is critical for manufacturers aiming to achieve consistent quality, high efficiency, and reliable product performance.
In this guide, we break down the complete preformed armor rods manufacturing process step by step, based on real industrial production equipment.
What Are Preformed Armor Rods?
Preformed armor rods are helically shaped wire products designed to wrap around conductors such as:
- ACSR conductors
- ADSS cables
- OPGW cables
Their main functions include:
- Reducing conductor wear
- Distributing mechanical stress
- Extending transmission line lifespan
Preformed Armor Rods Manufacturing Process (Step-by-Step)
The preformed armor rods manufacturing process involves multiple precise stages. Each step directly affects the final product quality and performance.
1. Wire Pay-off and Straightening
The process begins with raw materials such as:
- Aluminum alloy wire
- Galvanized steel wire
- Aluminum-clad steel wire
A pay-off system feeds the wire into a straightening machine to remove curvature and ensure stable feeding.
👉 Stable straightening is essential for maintaining accuracy in the entire preformed armor rods manufacturing process.
2. Wire Straightening & Cutting (Spool Dimension Critical Step)

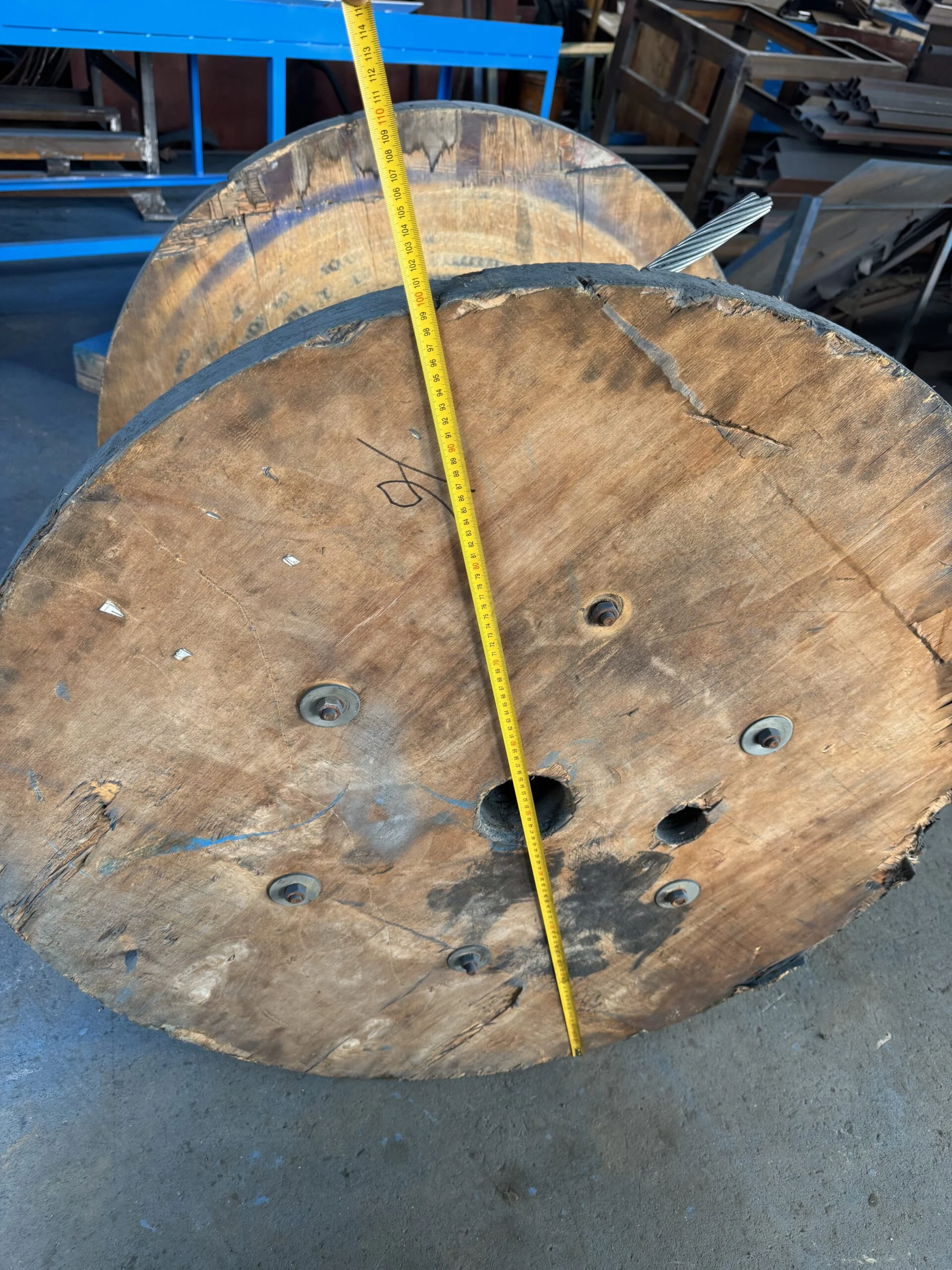

Before cutting, it is essential to ensure that the wire spool dimensions are properly matched with the machine.
This directly affects feeding stability and cutting precision.
Key spool dimensions include:
- Outer diameter of the spool
- Width of the spool

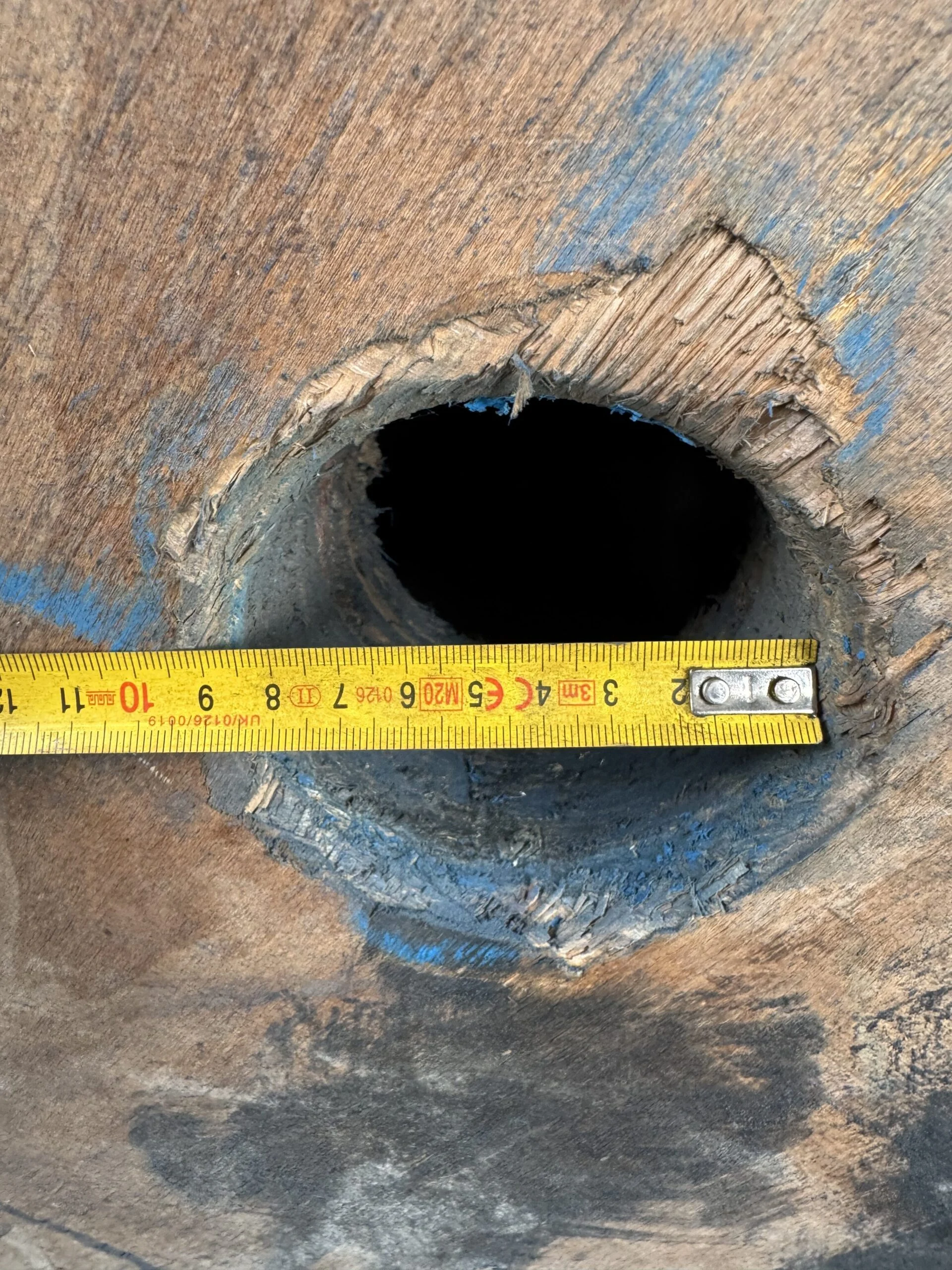

- Center hole diameter
👉 Accurate spool sizing ensures smooth operation of the straightening and cutting system.
After straightening, wires are cut into precise lengths based on product specifications.
High accuracy is required because:
- Length determines final helical pitch
- Inconsistent cutting leads to assembly problems
3. Helical Forming (Core Process)
This is the most critical stage in the preformed armor rods manufacturing process.
Straight wires are formed into precise helical shapes using a forming machine.
Key control factors include:
- Pitch angle consistency
- Forming pressure stability
- Feeding synchronization
👉 High-precision forming ensures uniform stress distribution and proper conductor grip.
4. End Processing (Installation Quality Control)
After forming, rod ends must be processed for safe installation.
Common methods include:
- Duckbill forming
- Round-end forming
- Chamfering
👉 Proper end finishing prevents cable damage and improves installation efficiency.
5. Surface Treatment (Optional)
Depending on requirements, additional treatments may include:
- Sanding
- Gluing
- Coating
These processes enhance:
- Corrosion resistance
- Friction performance
- Product durability
6. Inspection and Quality Control
Each batch undergoes strict inspection for:
- Dimensional accuracy
- Surface defects
- Mechanical performance
👉 Quality control ensures the reliability of the entire preformed armor rods manufacturing process.
7. Packaging and Labeling
Finished products are:
- Bundled
- Labeled
- Prepared for shipment
Automation improves both efficiency and traceability.
Complete Production Line Overview

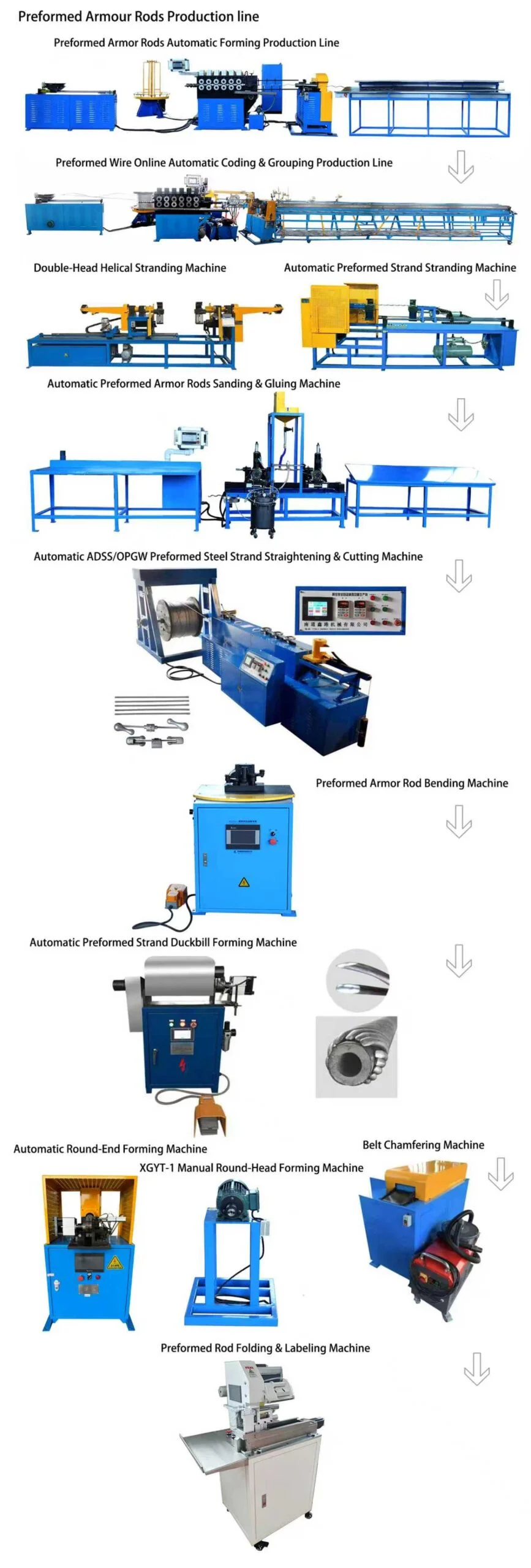

The following diagram shows a full preformed armor rods manufacturing process in an automated production line:
From Manual Production to Automated Manufacturing
Traditional manual production often results in:
- Inconsistent quality
- Low efficiency
- High labor costs
Modern automation significantly improves:
- Production accuracy
- Output capacity
- Product consistency
👉 For manufacturers aiming at large-scale production, a
preformed armor rods production line
provides a fully automated solution from feeding to packaging.
👉 For precise end finishing, an
automatic duckbill forming machine
ensures smooth and burr-free rod ends.
Why the Manufacturing Process Matters
The performance of preformed armor rods in real-world applications depends directly on the manufacturing process.
Poor production can lead to:
- Uneven stress distribution
- Increased vibration fatigue
- Premature conductor failure
A well-controlled preformed armor rods manufacturing process ensures:
- Reliable conductor protection
- Long service life
- Reduced maintenance costs
Conclusion
Understanding the preformed armor rods manufacturing process is essential for any manufacturer involved in power line fittings.
From raw material preparation to final packaging, every step plays a critical role in product performance.
For companies looking to improve efficiency and product consistency, upgrading to automated manufacturing solutions is a key competitive advantage.
