2026 Automatic Preformed Armor Rods (PA Rods) Production Line Solution | Power Fittings Tender Guide
In 2026, global smart grid upgrades, 5G optical cable deployment, and aging transmission line renovation have driven a rapid increase in demand for preformed armor rods (PA Rods). Power fitting manufacturers seeking to stay competitive in international tenders now require automation solutions that combine precision, efficiency, and full compliance with industry standards.
Xingang Machinery offers a comprehensive PA Rods production line solution that ensures your manufacturing meets DL/T 763-2001 standards, reduces human error, and provides full digital traceability for tender submission and quality assurance.
Watch the automatic preformed armor rods (PA Rods) production line in operation, including forming, end-rounding, marking and grouping processes.
1.Technical Principles and Application Value of Preformed Armor Rods (PA Rods)
Preformed armor rods are wrapped uniformly around conductors through a unique helical structure. Their primary function goes beyond physical protection and focuses on extending line service life:
Stress Distribution: Effectively relieves bending stress and vibration pressure at suspension points, preventing conductor deformation.
Anti-Vibration Fatigue: Suppresses aluminum strand fatigue fractures caused by aeolian vibration, a key requirement in aging line refurbishment projects.
Conductivity Restoration: When outer conductor damage ranges from 7% to 25%, armor rods can restore 100% of mechanical strength and electrical performance.
Armor rods produced using XINGANG MACHINERY equipment strictly follow color coding identification systems, with waterproof traceability labels for fast selection and accurate installation on-site.
2.Why a Fully Automatic Production Line Is Essential for Tender Qualification？
In today’s tendering environment, project owners focus not only on unit price but also on production stability and quality consistency:
Elimination of Human Error: PLC-controlled automation ensures consistent lay length and helix angle for uniform holding strength.
Full Traceability: Integrated online marking and automatic grouping provide digital traceability for each production batch.
Lower Total Cost: Despite initial investment, labor costs are reduced by up to 80% and scrap rate remains below 0.5%.
3.Core Equipment of XINGANG MACHINERY Automatic Solution
3.1 High-Speed Preformed Armor Rod Forming Machine
As the core unit of the entire line, this machine supports aluminum alloy wire, aluminum-clad steel wire, and galvanized steel wire.
High Precision: Length tolerance within ±2 mm, compliant with DL/T 763-2001.
High Efficiency: Maximum speed up to 1.5 m/s, suitable for 24/7 operation.
Intelligent Control: Siemens control system enables quick specification changeover.
3.2 Advanced End-Processing: Round Head & Duckbill Forming
Xingang Machinery provides two automated end-processing solutions depending on tender requirements:

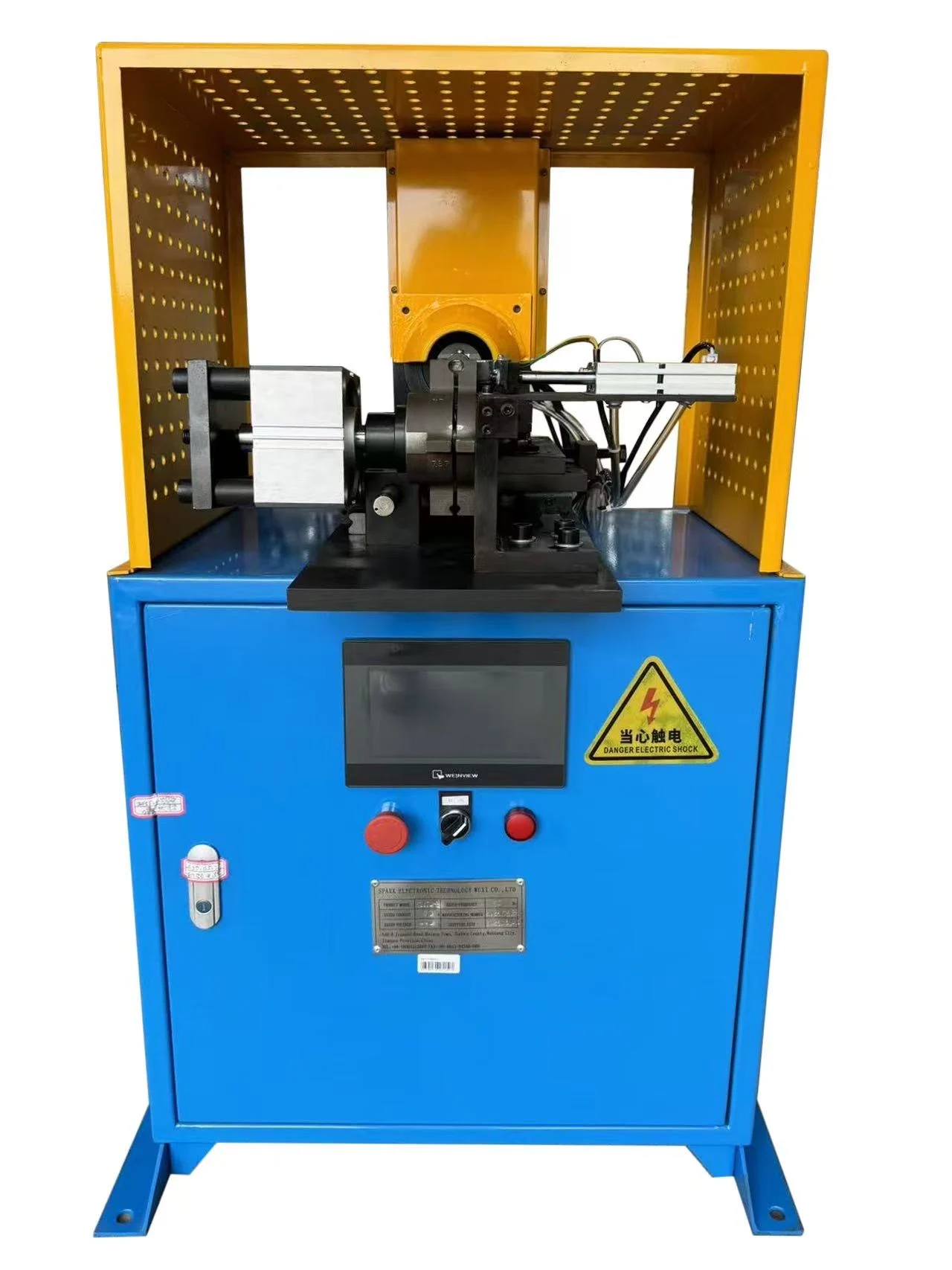

- Automatic End-Rounding Machine: Manual end grinding is inefficient and prone to burrs that may cause corona discharge. The automatic end-rounding machine applies induction heating and extrusion forming to produce smooth, rounded ends, improving electromagnetic compatibility in high-voltage applications.

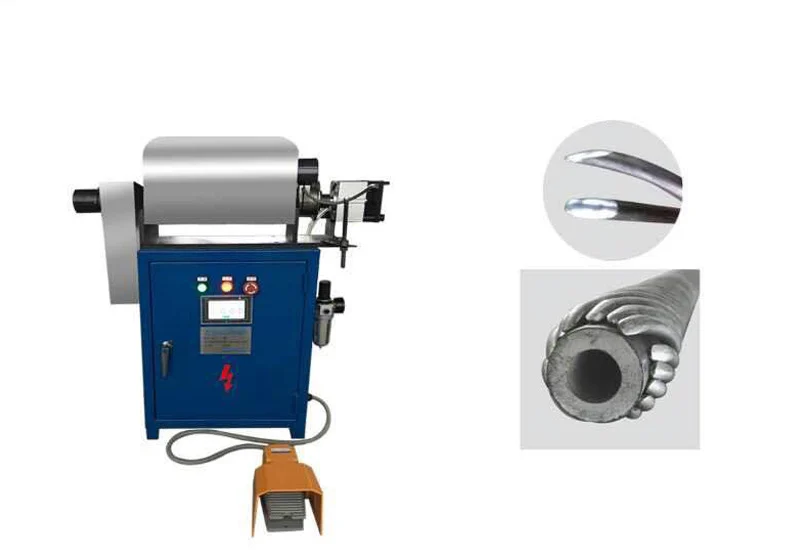

- Automatic Duckbill Forming Machine: Precision cutting system creates perfect duckbill ends without secondary grinding, For more details, visit our Duckbill Forming Machine Guide.

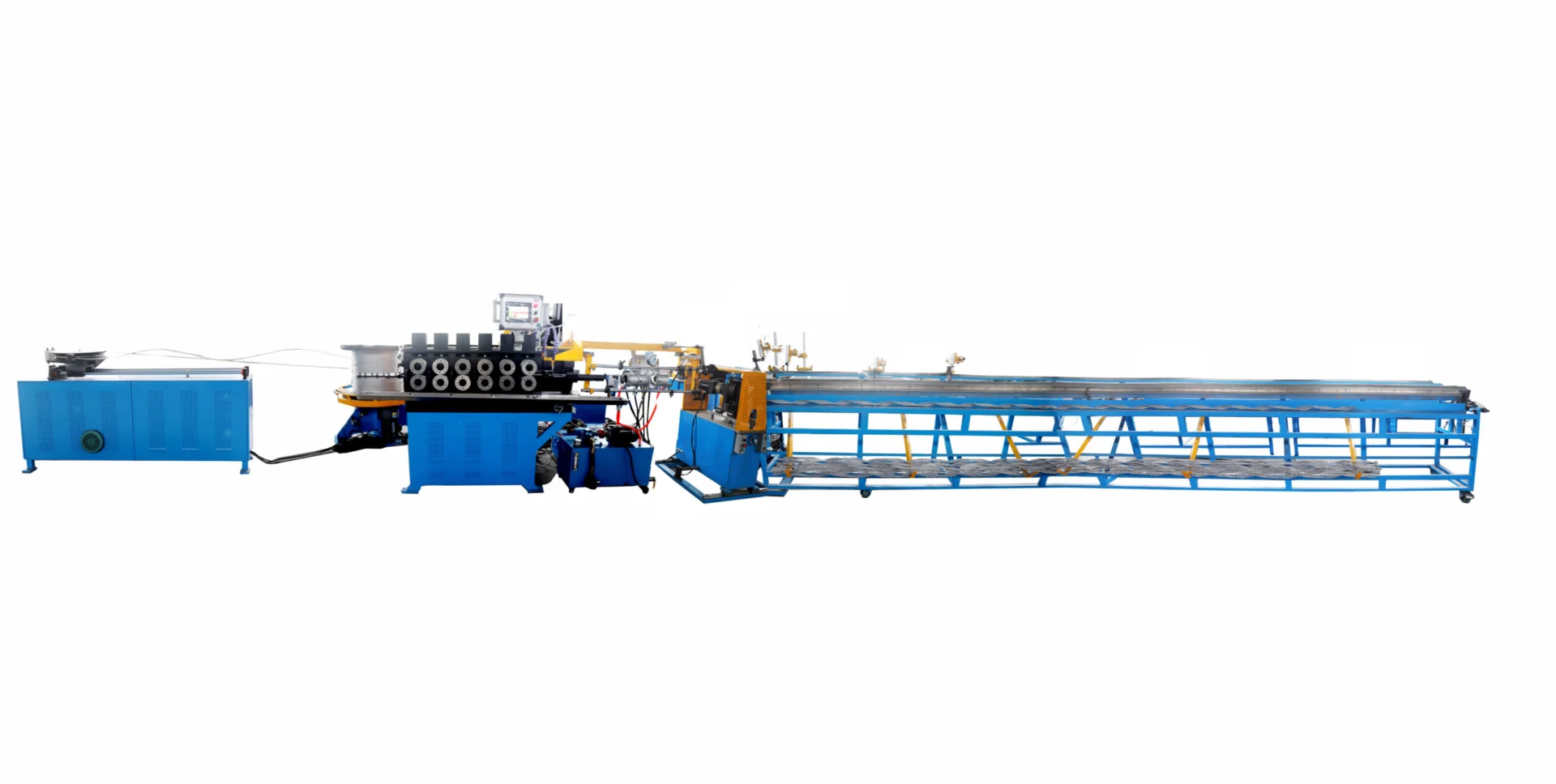

3.3 Online Automatic Grouping and Marking System
This system integrates color marking, specification printing, barcode labeling, and automatic grouping, significantly improving site inspection and installation efficiency.
4.Core Equipment Parameters (Factory Setup Reference)
| Equipment | Processing Range | Key Advantage | Standard |
|---|
| Automatic Forming Machine | 1.67–10.3 mm | Modular design, 99.5% stability | DL-T |
| Automatic Bending Machine | 5.0–50.0 mm | Fast changeover, IP54 | All-weather |
| End-Rounding Machine | Full range | Smooth ends, no burrs | Corona-free |
| Synchronous Stranding Machine | 50–2500 mm | ±1° angle control | Mechanical strength |
5.Global Service Capability of XINGANG MACHINERY
As a national high-tech enterprise, XINGANG MACHINERY has supplied equipment to over 500 power projects worldwide.
Global Export: Equipment delivered to over 30 countries.
Turnkey Projects: Complete support from factory layout to installation and training.
6. Conclusion: Your Trusted Partner for Power Transmission Infrastructure
Choosing Xingang Machinery means selecting a long-term partner with 20+ years of experience in the power fittings industry. Our PA Rods production line solution provides reliable, automated, and traceable production systems, ensuring your tender submissions meet global standards and your factory achieves operational excellence.
Contact Us for a Technical Solution and Quotation
- WhatsApp / WeChat: +86 15814626624
- Email: [email protected]
- Website: www.xingangmachinery.com
Get a free consultation and quote for your PA Rods production line solution today!
